Choosing a shower arm starts with the existing water outlet, required reach and shower-head compatibility. This guide explains wall and ceiling options, common lengths and what to measure before ordering.
Quick answer
Choose a wall-mounted shower arm when the water outlet is in the wall and the shower head needs horizontal reach. Choose a ceiling-mounted arm when the outlet is overhead and the shower head should sit directly above the showering position. Before ordering, check the mounting location, arm length, G1/2 connection, shower-head size and weight, available clearance, material, finish and the individual product’s certification information.
Is a shower arm a new trend after the shower station?
Not exactly. Shower arms and shower stations serve different layouts and have existed alongside one another for years. A shower arm supports a fixed overhead or rain shower head, while a shower station commonly combines an overhead shower with a rail, diverter and hand shower. The better choice depends on how the bathroom will be used, not simply which option is newer.
The appeal of a shower arm is visual simplicity. With fewer exposed bars, rails and hoses, it can create a cleaner, more architectural appearance and allow the shower head, tiles and tapware finish to become the focus. This restrained look is often associated with high-end contemporary bathrooms. “Premium” is a design impression rather than a guarantee of product quality, so construction, compatibility and certification still need to be assessed separately.
|
Choose a shower arm when… |
Choose a shower station when… |
|
You want a streamlined overhead-shower look. |
You want both an overhead shower and a movable hand shower in one coordinated system. |
|
Fewer visible components suit the design. |
Adjustability and flexible rinsing are priorities. |
|
The existing wall or ceiling outlet is correctly positioned. |
A rail-mounted hand shower would suit users of different heights or cleaning tasks. |
|
A fixed shower head will meet the household’s needs. |
The household prefers multiple showering functions. |

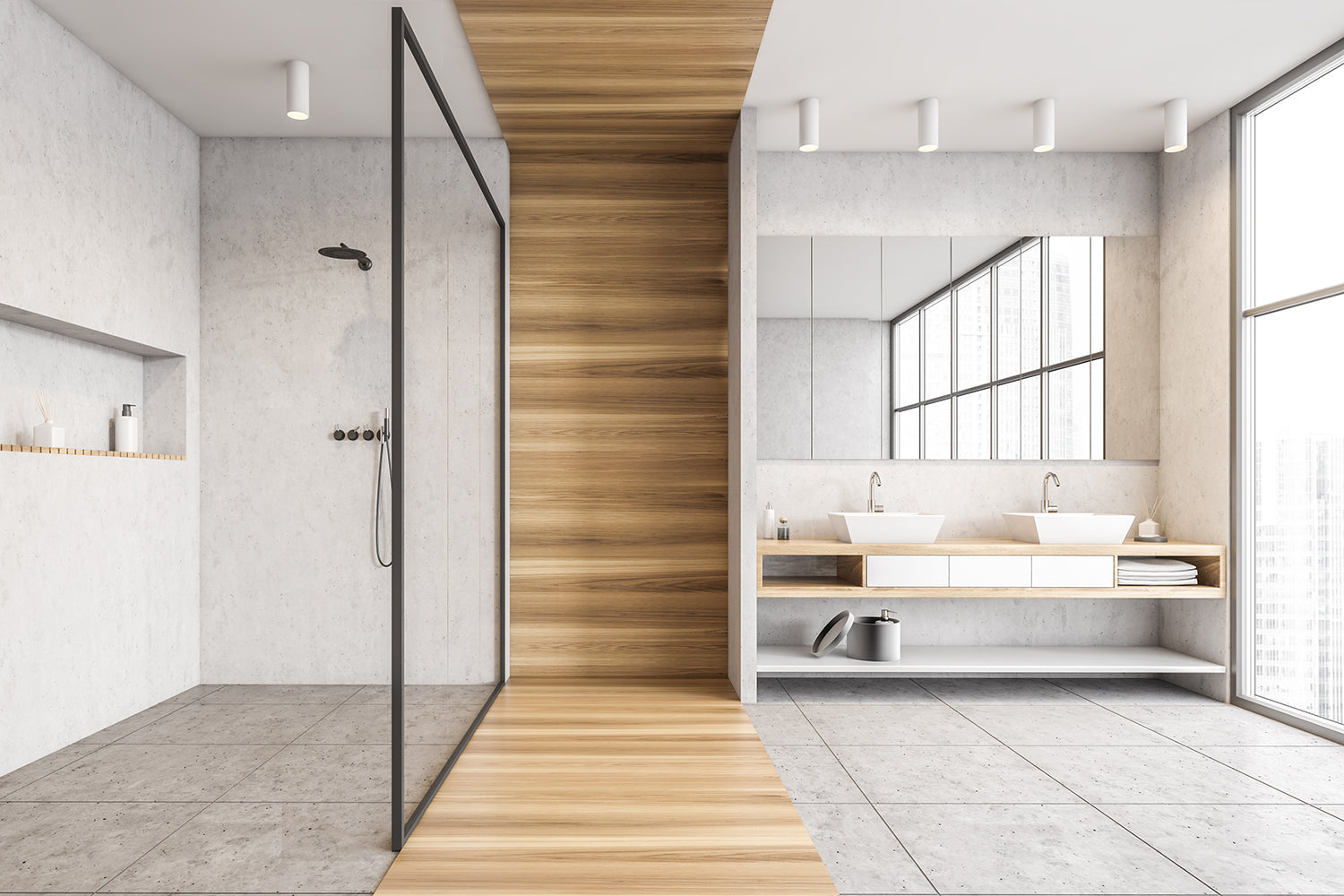

A simple wall arm and round shower head complement an open, architectural bathroom layout.
Wall-mounted vs ceiling-mounted shower arms
|
Feature |
Wall-mounted arm |
Ceiling-mounted arm |
|
Water outlet |
Comes through the wall. |
Comes through the ceiling. |
|
Direction |
Extends horizontally, or curves upward and outward. |
Drops vertically from above. |
|
Best suited to |
Existing wall outlets, many renovations and showers where horizontal reach is needed. |
Overhead outlets and layouts designed to centre the shower head from above. |
|
Main measurement |
Horizontal reach from the finished wall. |
Vertical drop from the finished ceiling. |
|
Check carefully |
Shower-head clearance from the wall, screen and controls. |
Ceiling height, overhead services, headroom and shower-head position. |
When a wall-mounted arm works best
A wall arm is usually the direct choice when the threaded outlet already exits through the wall. Straight arms create a crisp linear look; curved and gooseneck arms can lift the shower head higher or change its projection. Measure from the finished wall surface—not the concealed framing—to the intended centre of the shower head.
When a ceiling-mounted arm works best
A ceiling arm suits a water outlet positioned above the shower. It can centre a rain shower head without a long horizontal projection and contributes to a symmetrical, minimal look. Confirm the ceiling structure and plumbing route with the installer, especially if the outlet is being moved or a larger shower head is planned.
What shower-arm length should you choose?
The correct length is the one that places the shower head over the usable showering area while maintaining comfortable headroom and clearance. Length labels alone are not enough: compare the product drawing because the stated dimension may describe overall length, reach or drop depending on the design.
|
Nominal length |
Common use |
Measure before choosing |
|
200mm |
Compact wall or ceiling layouts where only a short reach or drop is required. |
Confirm the shower head will clear the wall, ceiling or nearby fittings. |
|
300mm |
A versatile mid-length option for many wall-mounted and ceiling-mounted layouts. |
Check the shower-head centreline and user headroom. |
|
400mm |
Useful when more wall projection or ceiling drop is needed. |
Check leverage, support, head dimensions and enclosure clearance. |
|
600mm |
A long ceiling drop for high ceilings or a deliberately lowered overhead position. |
Confirm finished ceiling height, desired shower-head height, rigidity, support and product-specific limits. |
How to measure before ordering
1. Identify the outlet. Confirm whether the plumbing connection exits through the finished wall or ceiling.
2. Mark the desired shower-head centre. Place it where the spray can fall comfortably inside the shower area.
3. Measure reach or drop. For a wall arm, measure horizontally from the finished wall. For a ceiling arm, measure vertically from the finished ceiling.
4. Allow for the shower head. Record its width or diameter, depth, connection position and any swivel joint.
5. Check clearances. Include screens, doors, niches, controls, ceilings and the tallest regular user.
6. Compare the technical drawing. Confirm how the manufacturer defines the arm’s listed length before purchase.
Check the arm, shower-head dimensions, screen clearance and plumbing position as one complete layout.
Are shower arms universally compatible?
No shower arm should be assumed to fit every shower head or every installation. Many Australian products use a G1/2 threaded connection, and current Ezymall examples include G1/2 models, but the connection must still be verified on both components. Matching thread size is only one part of compatibility.
|
Compatibility check |
Why it matters |
|
Thread type and size |
The shower arm and shower head must use matching connections and seal correctly. |
|
Shower-head dimensions |
A large head needs sufficient wall, ceiling and screen clearance. |
|
Weight and support |
The arm, outlet and fixing must be suitable for the connected head and installation. |
|
Mounting flange and depth |
The decorative flange must sit correctly against the finished surface while the threaded joint engages properly. |
|
Swivel and angle |
An adjustable joint can help direct the spray, but it also changes the head’s final position and clearance. |
|
Product instructions |
Manufacturer limits and installation instructions take priority over general guidance. |
Material and finish: what matters?
Material
The material affects corrosion resistance, strength, weight and finish quality. Ezymall currently lists shower-arm examples made from 304 stainless steel. Always check the individual product specification rather than assuming every model uses the same construction.
Finish
Chrome, matte black, brushed brass, brushed nickel and gunmetal can coordinate with shower heads, mixers and accessories. Matching the named finish is the safest starting point, but colour and sheen may vary between brands or production batches. For the most consistent result, compare physical samples or select coordinated products from the same range where possible.
Care
Follow the manufacturer’s care instructions. A soft cloth and mild cleaning method are generally safer than abrasive pads or harsh chemicals, which may damage some decorative finishes.
Straight, curved, gooseneck or swivel?
|
Style |
What it changes |
Good fit for |
|
Straight |
Creates direct horizontal reach or vertical drop with a clean linear profile. |
Minimal bathrooms and straightforward outlet positions. |
|
Curved |
Changes both height and reach while softening the silhouette. |
Wall outlets that need the head lifted or projected outward. |
|
Gooseneck |
Raises the head before bringing it over the showering area. |
Selected wall-mounted layouts and a more traditional or sculptural profile. |
|
Swivel or adjustable |
Allows some fine adjustment of direction or position. |
Layouts where the spray angle needs flexibility, subject to product limits. |
Australian installation and certification checks
WaterMark certification should be checked for the individual plumbing product in the official WaterMark Product Database where certification is required. Do not rely on a collection-level claim or assume that one certified model confirms another.
WELS applies to regulated shower products and their water-efficiency performance. A shower arm by itself does not establish the star rating or flow rate of the connected shower. Check the shower product’s registration and label information against the official WELS database.
Use a licensed plumber when plumbing is relocated or altered, and follow the requirements that apply in your state or territory and to the particular project. The installer should also confirm support, sealing, clearances and compatibility with the finished wall or ceiling construction.
Pre-purchase checklist
|
✓ Wall or ceiling outlet confirmed |
✓ Required horizontal reach or vertical drop measured |
|
✓ Shower-head width, depth and weight checked |
✓ Thread type and connection size confirmed on both components |
|
✓ Screen, door, ceiling, control and user clearances checked |
✓ Material and finish confirmed from the product specification |
|
✓ Product drawing and installation instructions reviewed |
✓ Individual WaterMark and WELS information checked where applicable |
|
✓ Installer consulted if plumbing, structure or fit is uncertain |
|
Frequently asked questions
Can I replace a shower station with a shower arm?
Sometimes, but it is not automatically a like-for-like change. The outlet position, mixer or diverter arrangement, wall penetrations and the loss of the hand shower must all be considered. A plumber should assess the existing installation.
Is a wall or ceiling shower arm better?
Neither is universally better. Match the arm to the existing or planned outlet and to the required shower-head position. Wall arms provide horizontal reach; ceiling arms provide vertical drop.
What is the best shower-arm length?
The best length places the shower head over the usable shower area with suitable headroom and clearance. Measure the finished space and compare the product drawing; do not choose by the nominal number alone.
Can I use a 600mm ceiling shower arm?
Yes, Ezymall carries 600mm ceiling shower arms. They suit selected high-ceiling or long-drop layouts, but support, rigidity, headroom, shower-head weight and the individual product instructions must be checked.
Will any shower head fit a G1/2 shower arm?
Not necessarily. Matching G1/2 threads is important, but dimensions, weight, sealing, swivel clearance and manufacturer requirements also affect compatibility.
Does a shower arm change water pressure or WELS rating?
The shower arm alone does not establish the connected shower’s WELS star rating or flow rate. Performance depends on the regulated shower product and the installation conditions.
Choose the layout first, then the finish
Start with the fixed facts: outlet position, required reach or drop, shower-head dimensions and clearances. Once those are confirmed, choose the profile and finish that support the bathroom’s design. For a clean and elegant result, a well-proportioned shower arm can keep visual clutter low while placing the overhead shower exactly where it needs to be.
